typedef struct
{
    char ChunkID[4]; //'R','I','F','F'
    unsigned int ChunkSize;
    char Format[4]; //'W','A','V','E'
} riff_chunk;

typedef struct
{
    char FmtID[4];
    unsigned int FmtSize;
    unsigned short FmtTag;
    unsigned short FmtChannels;
    unsigned int SampleRate;
    unsigned int ByteRate;
    unsigned short BlockAilgn;
    unsigned short BitsPerSample;
} fmt_chunk;

struct DATA_CHUNK
{
    char DataID[4]; //'d','a','t','a'
    unsigned int DataSize;
};

$ sudo apt-get install mediainfo
$ mediainfo /home/share/samba/sample-15s.wav
General
Complete name                            : /home/share/samba/sample-15s.wav
Format                                   : Wave
File size                                : 3.23 MiB
Duration                                 : 19 s 174 ms
Overall bit rate mode                    : Constant
Overall bit rate                         : 1 411 kb/s

Audio
Format                                   : PCM
Format settings                          : Little / Signed
Codec ID                                 : 1
Duration                                 : 19 s 174 ms
Bit rate mode                            : Constant
Bit rate                                 : 1 411.2 kb/s
Channel(s)                               : 2 channels
Sampling rate                            : 44.1 kHz
Bit depth                                : 16 bits
Stream size                              : 3.23 MiB (100%)

hd /home/share/samba/sample-15s.wav -n 128
00000000  52 49 46 46 24 9c 33 00  57 41 56 45 66 6d 74 20  |RIFF$.3.WAVEfmt |
00000010  10 00 00 00 01 00 02 00  44 ac 00 00 10 b1 02 00  |........D.......|
00000020  04 00 10 00 64 61 74 61  00 9c 33 00 0f f8 0f f8  |....data..3.....|
00000030  f3 fb f3 fb 66 0a 66 0a  49 09 49 09 83 fc 83 fc  |....f.f.I.I.....|
00000040  fd fd fd fd b2 06 b2 06  b1 03 b1 03 86 02 86 02  |................|
00000050  f5 0c f5 0c 85 0d 85 0d  fc 02 fc 02 8f 06 8f 06  |................|
00000060  d2 12 d2 12 11 0e 11 0e  02 01 02 01 a9 02 a9 02  |................|
00000070  9b 09 9b 09 2e 05 2e 05  4c 02 4c 02 53 09 53 09  |........L.L.S.S.|
00000080

$ aplay sample-15s.wav
Playing WAVE 'sample-15s.wav' : Signed 16 bit Little Endian, Rate 44100 Hz, Stereo
# 或
$ ffplay -ar 44100 -channels 2 -f s16le -i sample-15s.wav
ffplay version 4.4.2-0ubuntu0.22.04.1 Copyright (c) 2003-2021 the FFmpeg developers
  built with gcc 11 (Ubuntu 11.2.0-19ubuntu1)

#ifndef __WAV_H__
#define __WAV_H__

#define debug(fmt...) do \
            { \
                printf("[%s::%d] ", __func__, __LINE__);\
                printf(fmt); \
            } while(0)

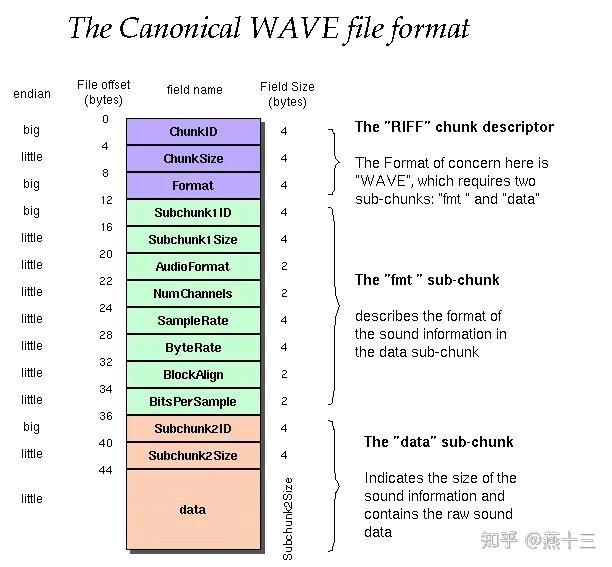

/* RIFF WAVE file struct.
 * For details see WAVE file format documentation
 * (for example at http://www.wotsit.org).
 */
typedef struct WAV_HEADER_S
{
    char            riffType[4];    //4byte,资源交换文件标志:RIFF
    unsigned int    riffSize;       //4byte,从下个地址到文件结尾的总字节数
    char            waveType[4];    //4byte,wave文件标志:WAVE
    char            formatType[4];  //4byte,波形文件标志:FMT
    unsigned int        formatSize;     //4byte,音频属性(compressionCode,numChannels,sampleRate,bytesPerSecond,blockAlign,bitsPerSample)所占字节数
    unsigned short  compressionCode;//2byte,编码格式(1-线性pcm-WAVE_FORMAT_PCM,WAVEFORMAT_ADPCM)
    unsigned short  numChannels;    //2byte,通道数
    unsigned int    sampleRate;     //4byte,采样率
    unsigned int    bytesPerSecond; //4byte,传输速率
    unsigned short  blockAlign;     //2byte,数据块的对齐
    unsigned short  bitsPerSample;  //2byte,采样精度
    char            dataType[4];    //4byte,数据标志:data
    unsigned int    dataSize;       //4byte,从下个地址到文件结尾的总字节数，即除了wav header以外的pcm data length
} WAV_HEADER;

typedef struct WAV_INFO_S
{
  WAV_HEADER    header;
  FILE          *fp;
  unsigned int  channelMask;
} WAV_INFO;

#endif

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "wav.h"

/* func     : endian judge
 * return   : 0-big-endian othes-little-endian
 */
int IS_LITTLE_ENDIAN(void)
{
    int __dummy = 1;
    return ( *( (unsigned char*)(&(__dummy) ) ) );
}

unsigned int readHeader(void *dst, signed int size, signed int nmemb, FILE *fp)
{
    unsigned int n, s0, s1, err;
    unsigned char tmp, *ptr;

    if ((err = fread(dst, size, nmemb, fp)) != nmemb)
    {
        return err;
    }
    if (!IS_LITTLE_ENDIAN() && size > 1)
    {
        //debug("big-endian \n");
        ptr = (unsigned char*)dst;
        for (n = 0; n<nmemb; n++)
        {
            for (s0 = 0, s1 = size - 1; s0 < s1; s0 ++, s1 --)
            {
                tmp = ptr[s0];
                ptr[s0] = ptr[s1];
                ptr[s1] = tmp;
            }
            ptr += size;
        }
    }
    else
    {
        //debug("little-endian \n");
    }

    return err;
}

void dumpWavInfo(WAV_INFO wavInfo)
{
    debug("compressionCode:%d \n",wavInfo.header.compressionCode);
    debug("numChannels:%d \n",wavInfo.header.numChannels);
    debug("sampleRate:%d \n",wavInfo.header.sampleRate);
    debug("bytesPerSecond:%d \n",wavInfo.header.bytesPerSecond);
    debug("blockAlign:%d \n",wavInfo.header.blockAlign);
    debug("bitsPerSample:%d \n",wavInfo.header.bitsPerSample);

}

int wavInputOpen(WAV_INFO *pWav, const char *filename)
{
    signed int offset;
    WAV_INFO *wav = pWav ;

    if (wav == NULL)
    {
      debug("Unable to allocate WAV struct.\n");
      goto error;
    }

    wav->fp = fopen(filename, "rb");
    if (wav->fp == NULL)
    {
      debug("Unable to open wav file. %s\n", filename);
      goto error;
    }

    /* RIFF 标志符判断 */
    if (fread(&(wav->header.riffType), 1, 4, wav->fp) != 4)
    {
      debug("couldn't read RIFF_ID\n");
      goto error;  /* bad error "couldn't read RIFF_ID" */
    }

    if (strncmp("RIFF", wav->header.riffType, 4))
    {
        debug("RIFF descriptor not found.\n") ;
        goto error;
    }
    debug("Find RIFF \n");

    /* Read RIFF size. Ignored. */
    readHeader(&(wav->header.riffSize), 4, 1, wav->fp);
    debug("wav->header.riffSize:%d \n",wav->header.riffSize);

    /* WAVE 标志符判断 */
    if (fread(&wav->header.waveType, 1, 4, wav->fp) !=4)
    {
        debug("couldn't read format\n");
        goto error;  /* bad error "couldn't read format" */
    }

    if (strncmp("WAVE", wav->header.waveType, 4))
    {
        debug("WAVE chunk ID not found.\n") ;
        goto error;
    }
    debug("Find WAVE \n");

    /* fmt 标志符判断 */
    if (fread(&(wav->header.formatType), 1, 4, wav->fp) != 4)
    {
        debug("couldn't read format_ID\n");
        goto error;  /* bad error "couldn't read format_ID" */
    }

    if (strncmp("fmt", wav->header.formatType, 3))
    {
        debug("fmt chunk format not found.\n") ;
        goto error;
    }
    debug("Find fmt \n");

    readHeader(&wav->header.formatSize, 4, 1, wav->fp);  // Ignored
    debug("wav->header.formatSize:%d \n",wav->header.formatSize);

    /* read  info */
    readHeader(&(wav->header.compressionCode), 2, 1, wav->fp);
    readHeader(&(wav->header.numChannels), 2, 1, wav->fp);
    readHeader(&(wav->header.sampleRate), 4, 1, wav->fp);
    readHeader(&(wav->header.bytesPerSecond), 4, 1, wav->fp);
    readHeader(&(wav->header.blockAlign), 2, 1, wav->fp);
    readHeader(&(wav->header.bitsPerSample), 2, 1, wav->fp);

    offset = wav->header.formatSize - 16;

    /* Wav format extensible */
    if (wav->header.compressionCode == 0xFFFE)
    {
        static const unsigned char guidPCM[16] = {
            0x01, 0x00, 0x00, 0x00, 0x00, 0x00, 0x10, 0x00,
            0x80, 0x00, 0x00, 0xaa, 0x00, 0x38, 0x9b, 0x71
        };
        unsigned short extraFormatBytes, validBitsPerSample;
        unsigned char guid[16];
        signed int i;

        /* read extra bytes */
        readHeader(&(extraFormatBytes), 2, 1, wav->fp);
        offset -= 2;

        if (extraFormatBytes >= 22)
        {
            readHeader(&(validBitsPerSample), 2, 1, wav->fp);
            readHeader(&(wav->channelMask), 4, 1, wav->fp);
            readHeader(&(guid), 16, 1, wav->fp);

            /* check for PCM GUID */
            for (i = 0; i < 16; i++) if (guid[i] != guidPCM[i]) break;
            if (i == 16) wav->header.compressionCode = 0x01;

            offset -= 22;
        }
    }
    debug("wav->header.compressionCode:%d \n",wav->header.compressionCode);

    /* Skip rest of fmt header if any. */
    for (;offset > 0; offset--)
    {
        fread(&wav->header.formatSize, 1, 1, wav->fp);
    }

    do
    {
        /* Read data chunk ID */
        if (fread(wav->header.dataType, 1, 4, wav->fp) != 4)
        {
            debug("Unable to read data chunk ID.\n");
            free(wav);
            goto error;
        }
        /* Read chunk length. */
        readHeader(&offset, 4, 1, wav->fp);

        /* Check for data chunk signature. */
        if (strncmp("data", wav->header.dataType, 4) == 0)
        {
            debug("Find data \n");
            wav->header.dataSize = offset;
            break;
        }

        /* Jump over non data chunk. */
        for (;offset > 0; offset--)
        {
            fread(&(wav->header.dataSize), 1, 1, wav->fp);
        }
    } while (!feof(wav->fp));
    debug("wav->header.dataSize:%d \n",wav->header.dataSize);

    /* return success */
    return 0;

/* Error path */
error:
    if (wav)
    {
      if (wav->fp)
      {
        fclose(wav->fp);
        wav->fp = NULL;
      }
      //free(wav);
    }
    return -1;
}

int main(int argc,char **argv)
{
    WAV_INFO wavInfo;
    char fileName[128];
    if(argc < 2 || strlen(&argv[1][0]) >= sizeof(fileName))
    {
        debug("argument error !!! \n");
        return -1 ;
    }
    debug("size : %d \n",sizeof(WAV_HEADER));

    strcpy(fileName,argv[1]);

    wavInputOpen(&wavInfo, fileName);
    return 0;
}
